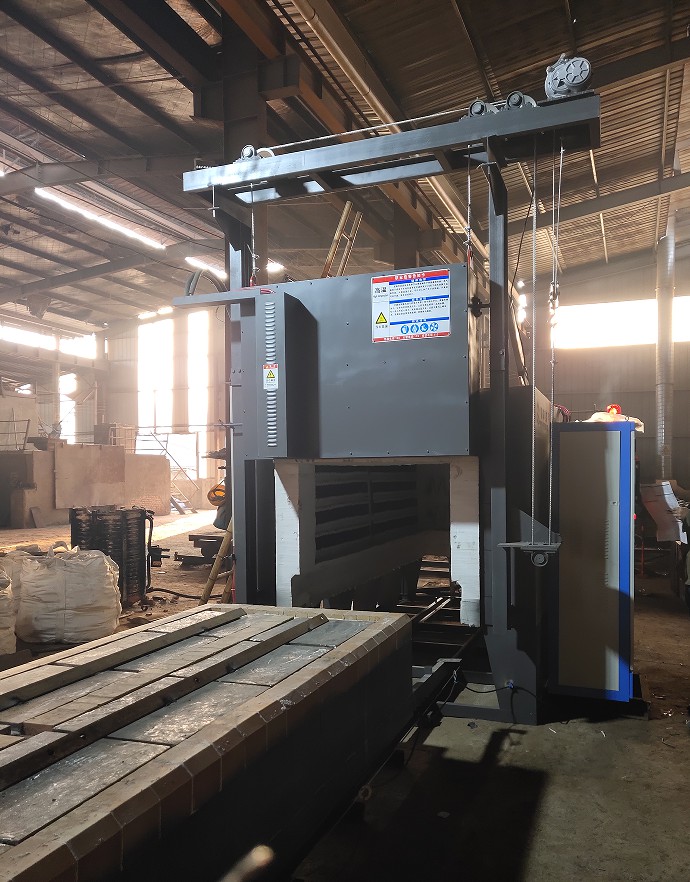

The bogie-hearth tempering furnace utilizes a car-bottom loading and unloading structure, making it suitable for the tempering heat treatment of large-sized and heavy-duty metal workpieces.
With rational furnace body design and process configuration, the bogie-hearth tempering furnace can meet the tempering requirements of different steel grades and various process curves. It is ideal for heat treatment conditions involving multi-variety, small-batch, or continuous production.
Temperature Control Performance and Energy-saving Advantages
Modern bogie-hearth tempering furnaces are generally equipped with intelligent temperature control systems that support multi-stage programmed control and multi-zone regulation. This effectively improves temperature uniformity within the furnace, ensuring consistent tempering quality and providing a reliable guarantee for high-quality products.
Regarding energy-saving design, the bogie-hearth tempering furnace utilizes high-performance insulation materials and optimized heating structures. While ensuring the heat treatment effect, it reduces energy consumption and enhances the economic efficiency and reliability of long-term equipment operation.
Our Technical Expertise in Bogie-hearth Tempering Furnaces
As an enterprise focused on the R&D and manufacturing of industrial heat treatment equipment, our company continuously focuses on structural optimization and technical upgrades for bogie-hearth tempering furnaces, constantly improving the equipment's applicability, stability, and safety.
Future Development Trends
With the advancement of intelligent manufacturing and green production concepts, the bogie-hearth tempering furnace is evolving towards intelligent control, energy-saving design, and process integration. Our company will continue to follow industry technical trends and improve product performance to provide customers with more professional and reliable heat treatment solutions.
For more information about the technical applications and products of the bogie-hearth tempering furnace,please visit our official website.
Medium High-Temperature Car Bottom Furnace Furnace Parameter Table
Parameter
Unit
RT3-250-9
RT3-270-9
RT3-280-9
RT3-300-9
RT3-320-9
RT3-360-9
Rated Power
kW
250
270
280
300
320
360
Hearth Size (Length)
mm
2400
3000
2400
2400
3000
3500
Hearth Size (Width)
mm
1500
1500
2000
2000
1500
1500
Hearth Size (Height)
mm
800
1000
1700
1700
1500
1500
Tempo de aquecimento da fornalha vazia
h
≤4
≤4
≤4
≤4
≤4,5
≤4,5
Consumo de energia com forno vazio
kW
≤65
≤70
≤80
≤85
≤78
≤90
Capacidade máxima de carga
kg
8300
9000
10000
11000
12000
13500
