Our company successfully shipped the HL series drop bottom furnace for aluminum solution heat treatment and vertical quenching to Dalian

Hora de emisión： 2025-07-28 09:01:21

Vistazo：

Recently, a high-performance HL series drop bottom furnace for aluminum solution

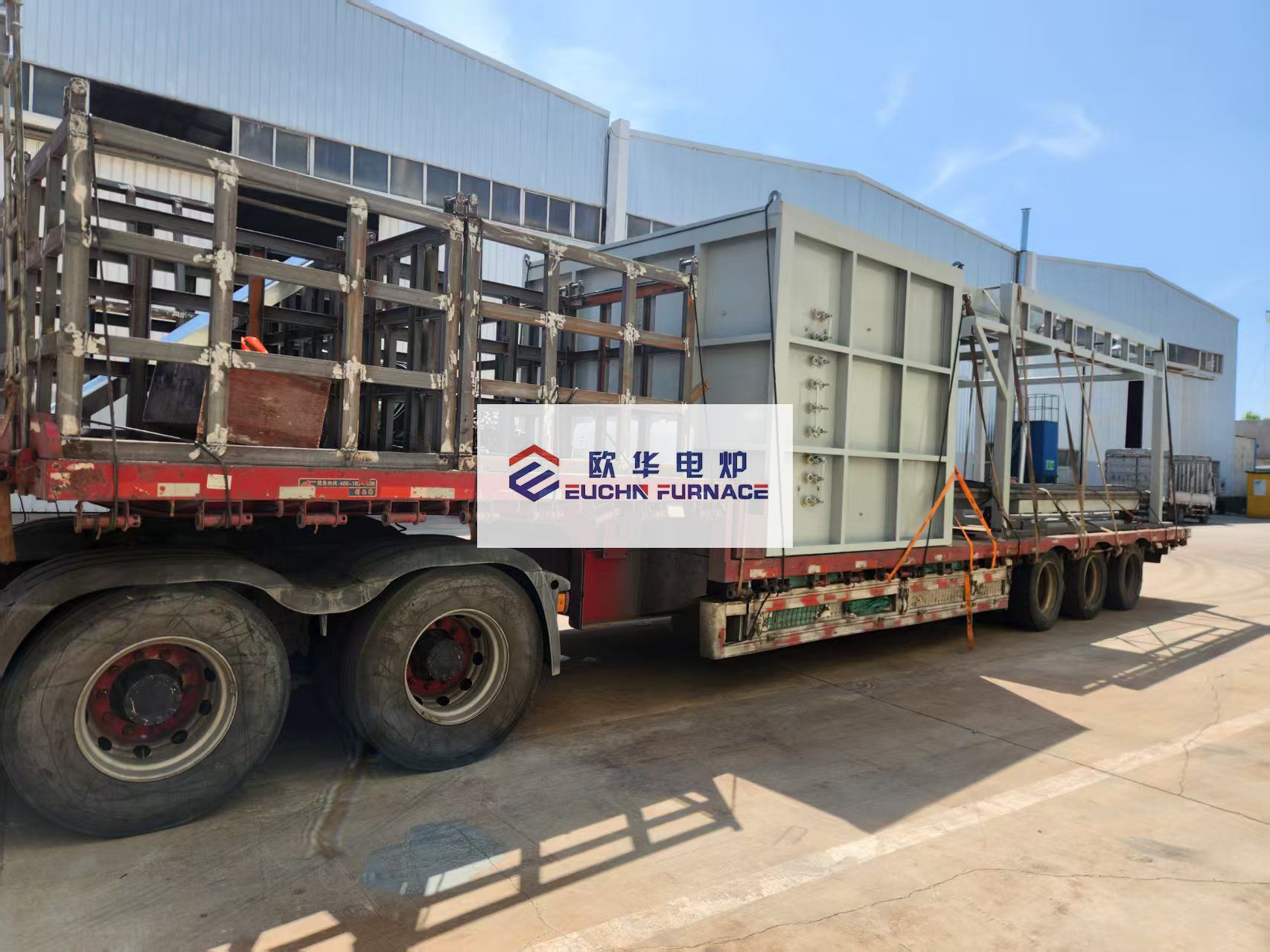

Recently, a high-performance HL series drop bottom furnace for aluminum solution heat treatment and vertical quenching, manufactured by our company, successfully completed its factory inspection and packaging. It has now been successfully shipped to Dalian, Liaoning Province.

The HL series drop bottom furnace is renowned for its precise temperature control system, uniform furnace temperature distribution, efficient quenching effect, and excellent energy-saving and environmental protection performance. It significantly enhances the comprehensive properties and quality stability of aluminum alloy products.

Technical Parameters

No.	Parameter	Value
1	Rated Working Temperature	650℃
2	Rated Voltage	380V
3	Temperature Uniformity	±5℃
4	Temperature Control Accuracy	0.3 grade
5	Heating Power	Resistance band heating 240KW (power adjustable/current limitable); Single zone power 90KW, usable independently
6	Material Basket Size	1600 × 1200 × 1200mm
7	Loading Capacity	1000Kg
8	Empty Furnace Heating Time	1.5h (550℃)
9	Fan Power	5.5Kw (2 units)
10	Furnace Shell Surface Temperature Rise	≤35℃ (excluding hot spots)
11	Quenching Transfer Time	≤15S
12	Effective Volume of Quenching Water Tank	≥30m³
13	Quenching Liquid Temperature	Room temperature
14	Water Tank Heating Method	Configured as needed; not configured for this furnace temporarily
15	Agitator Power	Configured as needed; not configured for this furnace temporarily
16	Loading Cart Movement	Manual push
17	Quenching Mechanism Motor Power	17/11Kw; Lowering rope speed: 16/32 m/min
18	Number of Heating Zones	1 zone
