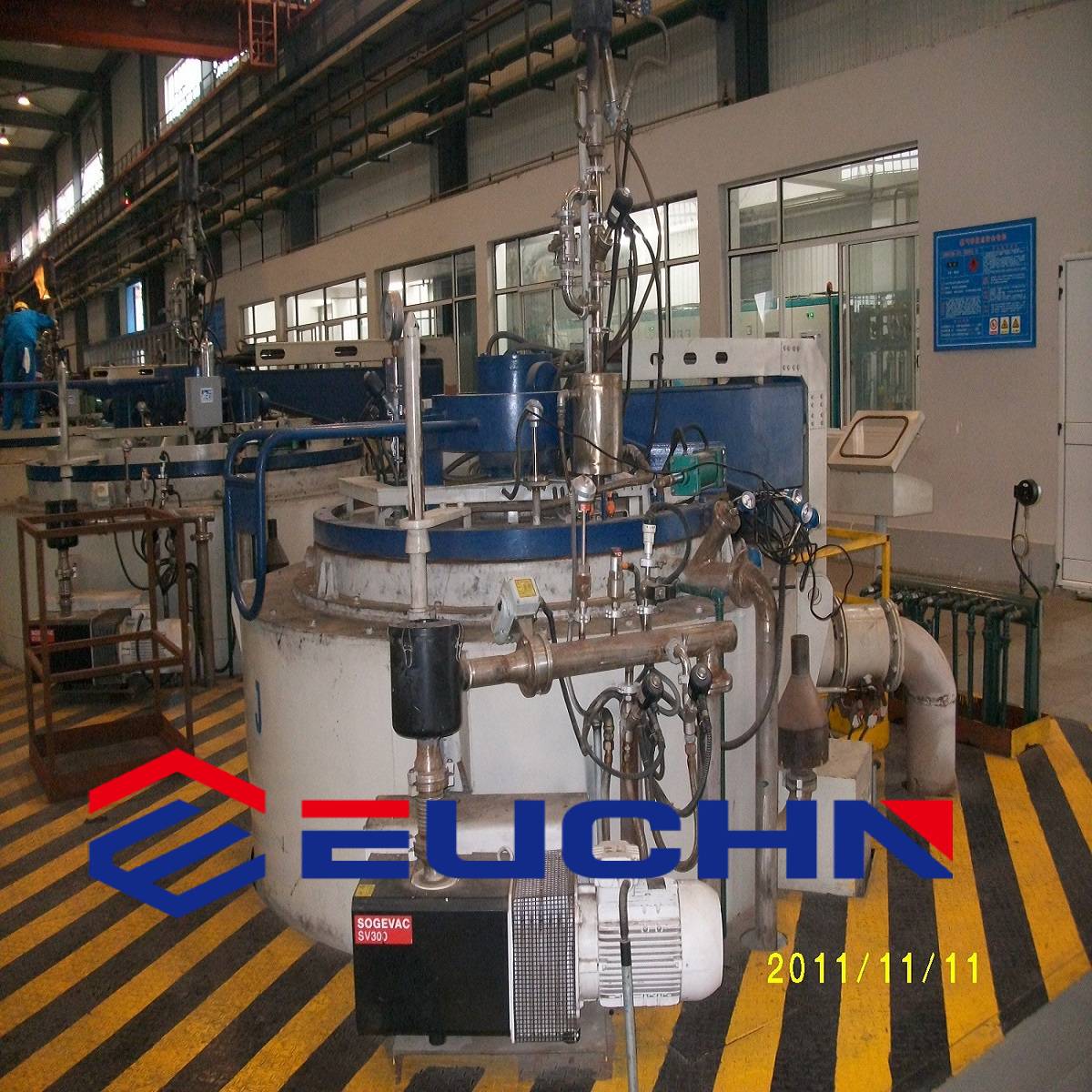

Well carburizing furnace



Well carburizing furnace  series RQ3


Well carburizing furnace  series RQ3 is mainly used for carburizing or carbonitriding of various alloy steels. The equipment is also used for non-oxidation heating or bright annealing, and  has high versatility. The operating temperature of the equipment is 950 ℃, the protective wall 10 mm thick is made of stainless steel 310S. A hot air circulation fan is installed on the furnace tank to ensure the uniformity of the carbon potential and the furnace temperature.


型号

Model


装料尺寸 (mm)

Loading size (mm)


装炉量  (公斤)

Loading capacity (kg)


功率 (kw)

Power, kWt


加热区

Heating zones, pcs.


RQ3-60-9

Ø450×600

150

60

1

RQ3-90-9

Ø600×900

450

90

1

RQ3-120-9

Ø600×1200

600

90

2

RQ3-180-9

Ø850×1500

1500

180

3
